| Plaats van herkomst | China |
| Merknaam | SDLG |
| Certificering | ISO9001 |
| Modelnummer | L903h |

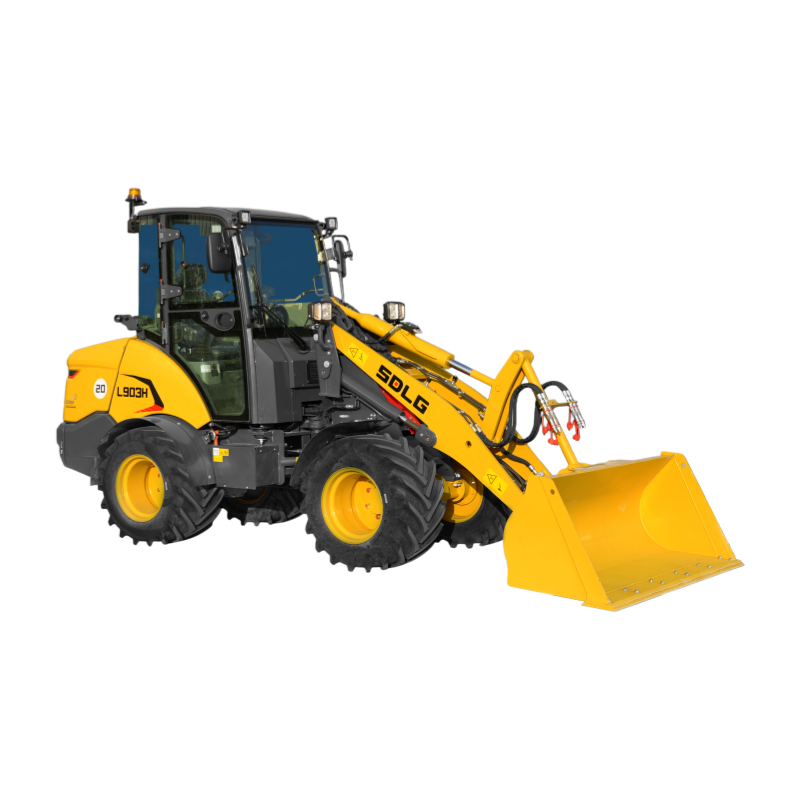

SDLG Lingong L903h Compact Wheel Loader with 0.45m³ Bucket
Product Advantages
Equipped with a powerful and reliable 35.5 kW diesel engine that meets both EU Stage V and U.S. EPA Tier 4 Final emission standards.
The travel drive system adopts DA control to achieve automatic variable speed regulation and extreme load control.
The inching brake pedal enables precise fine-tuning and smooth braking, thereby enhancing operational precision, safety, and comfort.
P-kinematics provides precise parallel guidance across the whole lifting height, ensuring compatibility with various fork attachments.
The FOPS & ROPS cabin, equipped with a rearview monitoring system, provides broad visibility and ensures safe, comfortable operation.
| M Turning radius at inside of tires,mm (ft in) | 2,039 (6' 8.3") |
| Overall shipping size (L)* (W)* (H),mm (ft in) | 4,890 (16' 0.5")*1,720 (5' 7.7")*2,384 (7' 9.9") |
| Tipping load (full turn),kg ( lbs ) | 1800(3968.32) |
| Speed at F1/R1,km (h(mph) | 0~7.7(0~4.78) |
| Engine mode | 4TNV86CT-PLG1C |
| Max.breakout force,kN (lbf ) | 23(5,171) |
| F Dumping height,mm (ft in) | 2,384 (7' 9.9") |
| E Height at bucket pin,mm (ft in) | 2,990 (9' 9.7") |
| D Dumping angle,° | 45 |
| C Reach at max.height,mm (ft in) | 620 (2' 0.4") |
| B Ground clearance,mm (ft in) | 259 (0' 10.2") |
| A Wheelbase,mm (ft in) | 3,100 (10' 2") |
| Rated power,kW (hp)/r/min | 35.5(47.6)/2,400 |
| Standard bucket capacity,m³ (yd³) | 0.45(0.589) |
| K Turning radius at over bucket,mm (ft in) | 4,130 (13' 6.6") |
| J Articulation angle,° | 36 |
| I Wheel tread,mm (ft in) | 1,140 (3' 8.9") |
| G Bucket rollback at ground level,° | 48 |
| Speed at F2/R2,km/h (mph) | 0-19.5(0~12.12) |
| Transmission type | HST |
| Fuel tank,L (gal) | 50(13.2) |
| Tire size | 19.0/45-17 |
| Engine displacement,ml (in³) | 2091(127.6) |
| Operating weight ,kg (lbs) | 3,515(7,749) |
| Rated load ,kg (lbs) | 900(1,984) |
Details Images
